The RailEasy™ Lag Stud is designed for short cable runs and must be paired with a RailEasy™ Tensioner at the opposite end. Available in both right-hand and left-hand thread options, it features a compression fitting that secures the cable using standard hand tools..
- Product #: S0980-R004X2
- Finish: Type 316 Stainless Steel
- Size: 5/32 in
- Weight: 0.16 lbs/ea

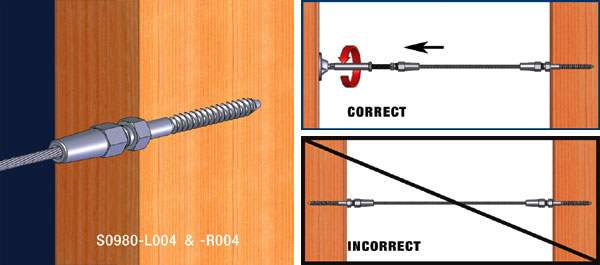

- Stud is used on a straight run with a S0981-0004 Tensioner at other end
- Right hand Thread
Product Specifications
Code:
S0980-R004X2
Pieces
2
Railing Type
Studs
Additional Product Info
Additional Specifications
RailEasyTM Lag Stud (non-tensioning, requires a RailEasyTM Tensioner at the opposite end)
The RailEasy™ Lag Stud is designed for use in short runs and must always be used with a RailEasy™ Tensioner at the opposite end of a cable run for tensioning capabilities. These fittings are made from marine grade stainless steel and are available with a right and left hand thread. The compression fitting holds the cable using simple hand tools. Holes must be pre-drilled before installing RailEasy™ Lag Studs.
Other Specifications
| A: | 5/32 in |
| B: | 0.28 in |
| C: | 2.25 in |
| D: | 0.44 in |
| THREAD: | RH |
| QTY: | 1 |
