Stainless Steel T316 Proof Coil Chain – 3/8 in
Request Quote
Stainless Steel T316 Proof Coil Chain – 3/8 in
Request a Quote
Our SSPC375 stainless steel Grade 30 welded chain meets all National Association of Chain Manufacturers (NACM) stainless chain size requirements. Offered in trade sizes 1/8 in through to 1 in, this corrosion-resistant stainless chain is ideal for marine, waste-water, agricultural, food processing, and other corrosive environments and applications.
Login to View Prices or Request a Quote
Product Highlights
- Stainless steel chain 3/8 meets NACM welded chain dimensional specifications
- Exceeds minimum breaking strengths for stainless steel welded chain

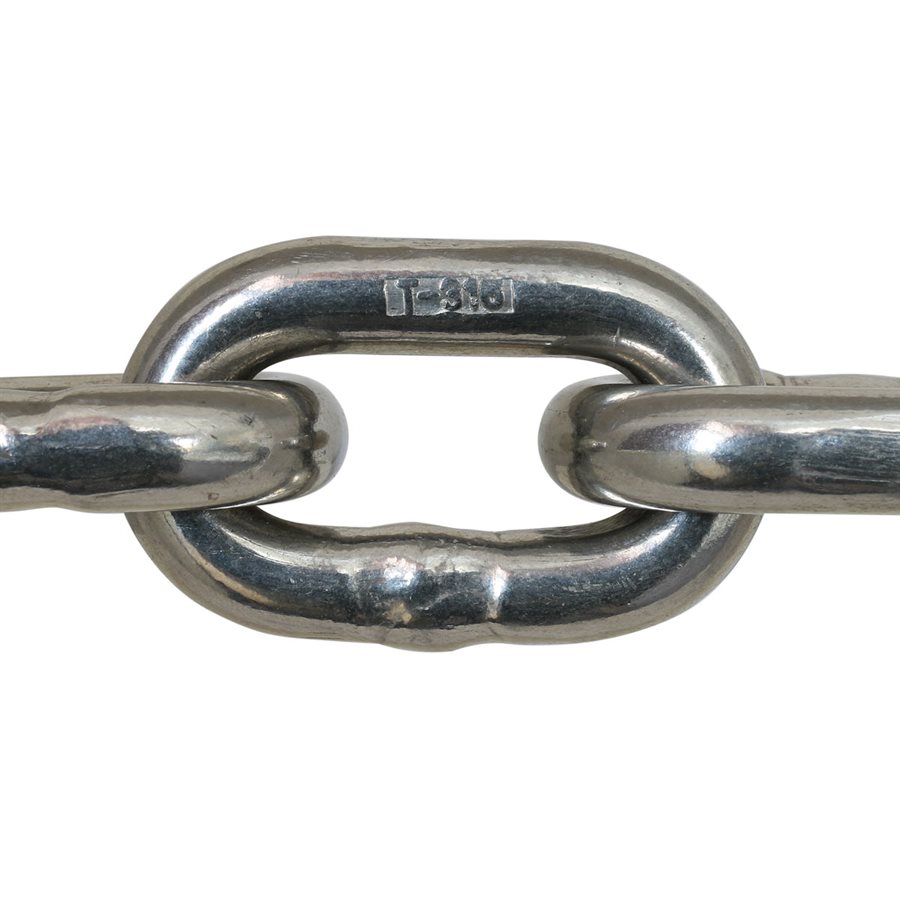

- Hallmarked “316FBI”
- Offered in sizes 1/8 in through 1 in
- Ideal for high-corrosion environments including marine, waste-water, agricultural, and food processing
- Not for overhead lifting (Grade 30 restriction)
Product Specifications
Finish
Type 316
Chain Type
Grade 30 T316 Proof Coil Chain
Size
3/8 in
WLL
3550 lbs
Wire Diameter
0.394 in
Inside Length (Max)
1.34 in
Inside Width (Min)
0.55 in
Overhead Lifting
False – Do Not Use
Proof Tested
True
Additional Product Info
Additional Specifications
Applications
T316 stainless steel proof coil chain is particularly suited to high-corrosion environments and finds use in an array of applications including:
- Marine and saltwater environments
- Wastewater treatment facilities
- Agricultural equipment and farm hardware
- Food-processing facilities
- Sanitation and washdown areas
- Corrosive chemical processing
- Light-duty load securement
- General utility chain applications
Product Downloads
You Might Also Like
- Stainless Steel T316 Proof Coil Chain – 5/8 in × 150 ft (Code: SSPC625-150)
- Stainless Steel T316 Proof Coil Chain – 1/2 in
- Stainless Steel T316 Proof Coil Chain – 3/16 in
- Stainless Steel T316 Proof Coil Chain – 1/8 in
Contact Us
Other Specifications
| A) Wire Diameter: | 0.0.394 in |
| B) Inside Length (Max.): | 1.34 in |
| C) Inside Width (Min.): | 0.55 in |
| Overhead Lifting: | False, Do Not Use For Overhead Lifting |
| Proof Tested: | True |
Safety Notice
Please note that all dimensions are nominal and all weights approximate.
WLL is the maximum working load under any condition. Never exceed the WLL or load the chain beyond its minimum breaking strength. Attachments must also match or exceed the chain WLL. Avoid shock loads.
This chain is not suitable for overhead lifting (Grade 30 restrictions–only Grade 80 alloy chain is approved for overhead lifting.)
Eliminate twists and kinks in the chain before use and inspect your chain regularly for damage, distortion, elongation, corrosion, and other visible signs of wear.
